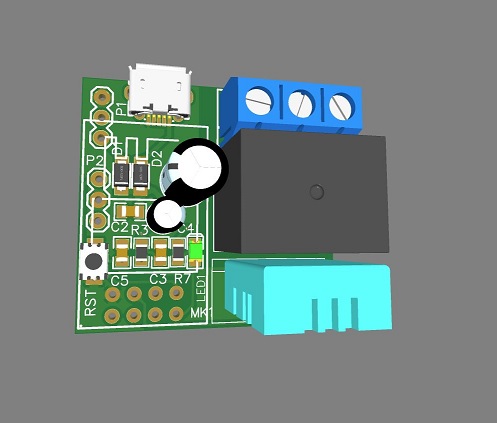

• Updated version of our ESP8266-01 (ESP-01) relay and DHT controller board adding opto coupler for isolation between controller and relay drive. For reduced parts you can use previous Version 1 reducing parts count

  2 versions of board are available are still available for either Mini and Micro USB connectors for powering it up. Optional header connector is available for supplying 5V into the board.


  To help in programming the board please use our ESP-01 programmer foe easy interface


  Features

       Mini or Micro USB power connector
       5V header power connector
       Rx / Tx header connector
       DHT sensor
       3 pin screw terminal for relay contacts
       3v3 voltage regulator


  Documents

      Schematic
      PCB laybout on EasyEDA
      Firmware code
      Flash tool
      Android app






  The boards are available for purchase on our Tindie store.
