Products
-

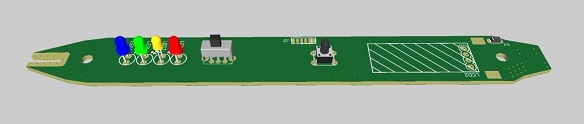

Logic Probe Essential tool in every ones tool box for digital projects testing and trouble shooting

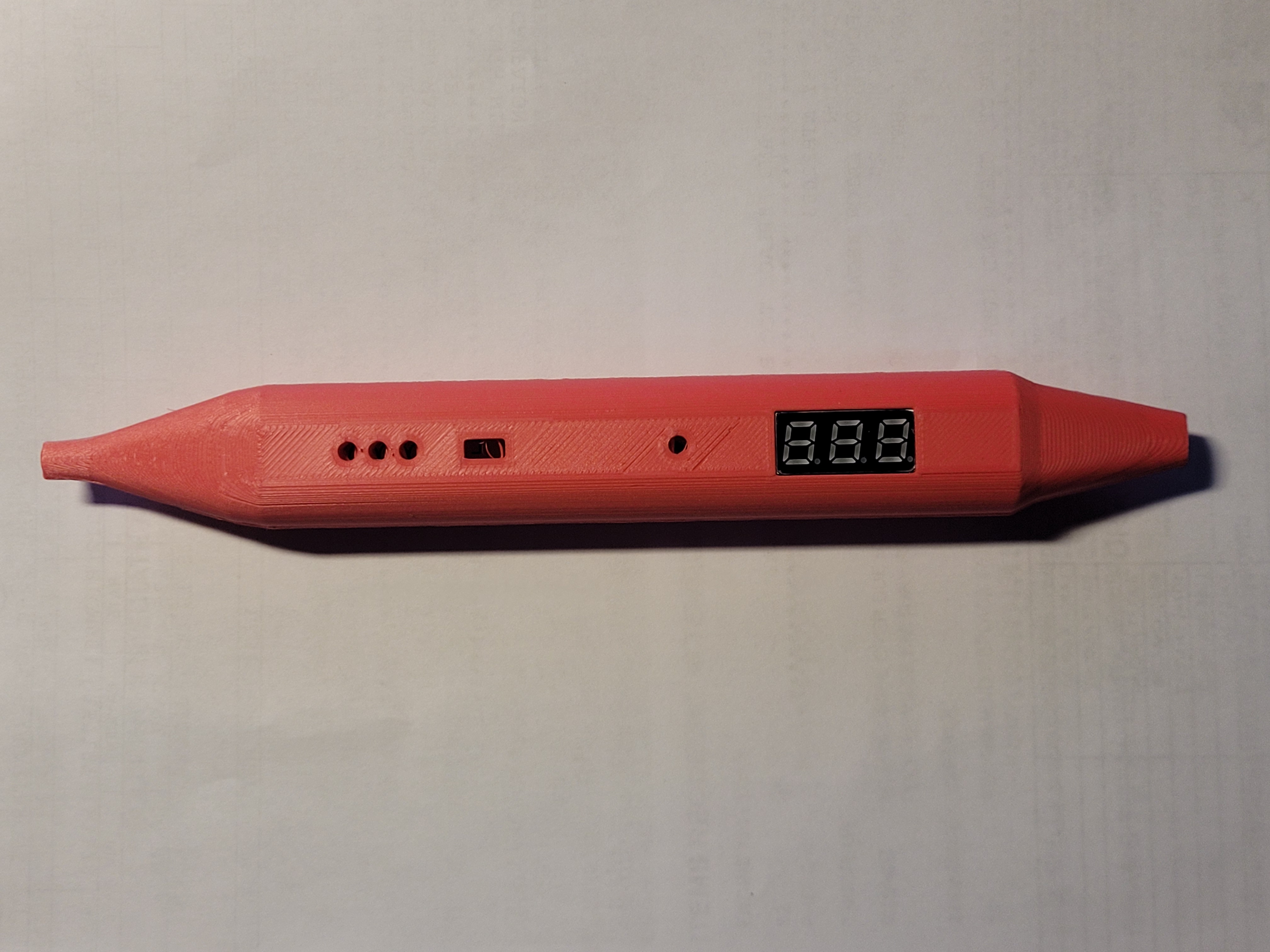

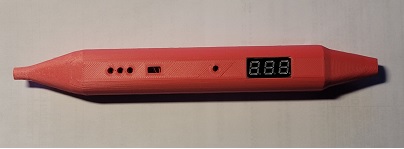

The original probe circuit had been reworked and replaced with microcontroller which adds floating LED indicator.
Frequency Probe An evolution of the logic probe, same functions and adds frequency counter on LCD display
Frequency probe 2 Next evolution to the Frequency probe adding crystal check right on the probe
USBasp An essential simple programmer for AVR microcontrollers
USBtiny Alternative programmer to USBasp
ESP8266-01 programmer Programmer for the infamous ESP8266-01 WiFi module
UNO ATtiny programmer Shield for Arduino UNO, Mega2650, Leonardo and alike boards with similar header configuration with sockets for ATtiny 84, 85 and 2313 processors with ISP pin out
ATtiny 2in1 programmer II Update on the UNO ATtiny programmer shield by adding Nick Gammon HEX programmer option via SD card
PICkit 2 lite Smaller and stripped down version of PICkit 2 as it does not contain the 2 EEproms
PICkit 2 clone PICkit-2 basic PIC microcontroller programmer
PICkit 3 clone A DYI programmer/debugger 3 for PIC processors.
Touch switch Capacitive touch switch based on TTP223 controller
32u4-CAN Focused for OBD testing and diagnostic purposes. Based on ATmega 32U4 processor identical to Leonardo CAN bus with Micro SD socket for logs and data storing. Features Arduino Uno expansion pin outs
32u4 prototype board Companion expansion board to 32u4 CAN It can be used with Arduino UNO and likes and also Arduino Mega 2560 parcialy
OBD-II DB9F Break out board DB9(female) to terminal post. Great alternative to OBD-II / DB9 cable in 32u4-CAN project
Easy connection to board signals
Can be used in other projects
OBD-II signal names and DB9 pins clearly labeled
AT90CAN Building on top 32u4-CAN and ATmega 2561 a new board is born with larger processor and more I/O pins. It features mega2560 style pin headers as part of larger processor with some ommisions. it features same screw terminal and OBD DB-9 connector and SD card for local storage.
OBD logger Yet another OBD tool. Building on 32u4-CAN and AT90CAN, this board utilizes STM32F105 processor for much faster data processing. Features 4 channel fast CAN busses and additional LIN bus utilized for less crytical lower rate buses used for things like HVAC, steering wheel and/or door controls.
ATmega DIP40 Break out board for DIP-40 ATmega8535, ATmega16, ATmega32, ATmega164, ATmega324, ATmega644, ATmega1284, processors.
Board features 5.0 & 3.3 1A volt regulators, jumper selectable for MCU core. ICSP, UART and USB programming depending on build configuration
ATmega 4808 ATmega4809 break out board for TQFP-32
ATmega 4809 break out board for TQFP-48 ATmega4809
ATmega 2561 Break out board for ATmega64 / ATmega128 / ATmega1284 / ATmega2561 / AT90CAN32 / AT90CAN64 / AT90CAN128
ATmega 2561 RC Reworked ATmega 2561 board meant for Remote Controls with powerpins on each port
ATmega xxM1 TQFP-32 to DIL-32 0.600" break out board for ATmeaga16M1, ATmeaga32M1, MTmeaga64M1, ATmeaga32C1, ATmeaga64C1
proMini UPDI Yet another proMicro remake. This one includes all (extra 5 I/O) lines and as its dual purpose it features connector that can be made into UPDI programmer utilizing MCUdude UPDI code
SWC Single Wire CAN module for GM 33Kb LAN communication. Needs to be connected to a host CPU having onboard CAN controller or through one externally
SWC2 updated version of SWC to include MCP2515 CAN controller via SPI connections
RJ45-PoE Power injector to RJ45
TLC5947 TLC5947 break out board
200x10 RGB 5050 RGB LED light bar
200x10 5730 LED light bar
300x10 ws2812 ws2812 light bar as part of Trim Light module
Trim Light 5730 This is custom 2 piece circuit board for a client's car build project. ??? Trim light 2812 Variation of the 5730 controller redesigned for sk6812 LEDs with white orange versions of LEDs and/or ws2812 LEDs
200x13 bead light bar with 8 bead LEDs can add lens caps with different focal lens to be anything between spot to flod
ELM327 An OBDII to serial interface
Defroster A custom board for customers project car to control rear window defroster and fog lights with clock and 1.8" LCD display. Though the board is specific for function its very flexible and can be used for other things
Night Light LED dimmer A PWM module to control brightness of LED (string) using On/Off, up, down buttons
Night Light LED dimmer Dual Second revision with dual output, remote switches and additional outputs and expanded I/O port
OS_2.3 Sprinkler controller 2.3 based on Rays Hobby Open Sprinkler project. Collamenation of 2.x components with hybrid component design.
OS 2.3 DC valve voltage rectifier / boost board DC voltage booster for DC valves. Compatible with 2.3 or 3.2 version of O.S.
OS 2.3 16 port Expansion board As the name , 16 port expansion board for Open Sprinkler 2.3. Can be configured as AC or DC version
Newer and updated version of the Sprinkler controller based on the ESP8266 WIFi controller. Optional header provided for wired Ethernet connection through ENC28J60 controller.
16 port expansion board for OS 3.2. can be configured as AC or DC with PCA9555 controller
ESP-01 2x595 Very simple clock NTP based and self adjusting based on internet time server.
ESP-12 version of 2x595 NTP clock to utilize LDR and provide more I/O ports
ESP-xx 5x595 Expanding on the ESP-01 2x595, this board adds 3 more 7shc595 registers option for DS1307 or DS3221 modules with either ESP-01 or ESP-12 WiFi controllers.
s7s 1.8" clock Serial 7 segment display with headers for ESP8266-01 or ESP8266-12
s7s 0.56 Serial 7 segment display with 0.56" LEDs
s7s 0.8 Serial 7 segment display with individual 0.8" segment displays
0.36 4 digit 7 segment display Multiplexed 7 segment 4 digit display for ESP-01 or ESp-12 clocks
0.56 4 digit 7 segment display Multiplexed 7 segment 4 digit display for ESP-01 or ESp-12 clocks
4 digit 0.56" 7 segment display for ESP-xx 0.56" 4 digit display of individually addressed segments on each digit for ESP-xx 5x595
web_4ch ESP8266-12 based board for controlling 4 relays with DS1307 or DS3221 clock module socket. It also has option for DHT11/22 sensor as well / or LM35.
power can be applied via barrow connector or screw terminals. Each relay is dry contact for isolation purposes and not being dependant on input power.??? T-10 bulb Few layouts of T10 LED bulbs using 5070 LED chips
Gear Selector Customer specified circuit to display selected gear in 5x7 matrix display. there are 2 pcb modules piggy backed for custom small packaging
5x7 bi-color led display Under development
Second version of gear selector but with 0.9" bi-color (3 when mixed) display
4Ch audio mixer Audio 4 channel stereo mixer with 2 microphone inputs and TDA1024 tone control
TEA2025 4w amp Small dual channel 2w+2w amplifier
TDA2050 2+1 amp Stereo amplifier using TDA20x0 series audio amplifier chips with subwoofer. The board is meant to be used as stand alone or as stacking on top of our 4ch mixer board.
RC-L293 Remote control receiver combining ATmega328 aka Arduino Uno with dual L293 stepper motor controllers and 2 servos (L293 stepper shield) In addition it has plug in interface for NRF24L01 and HC05 Bluetooth module making it dual headed receiver for remote control enthusiasts
OpenProg Open Programmer will program some common PIC and AVR microcontrollers
I2C-SD Dual interface SD card adapter.adapter. Can be interfaced to SPI or I2C Model A comes as miniSD format Model B comes as miniSD or full SD/MMC
VU_Meter-2x30 Stereo 2x30dot VU meter based around PIC16F1705 microcontroller
VU_Meter-15 Dial type VU meter with stereo input
VU_Meter-Neo Pixel Stereo dual bar VU Meter using 16 bits per channel of ws2812 led trings _trm_7.5.jpg)
VU_Meter-2x16 Dual bar stereo VU meter with 16 bars per channel _trm_5.jpg)
VU Meter 1x40 40 dot bar stereo VU meter

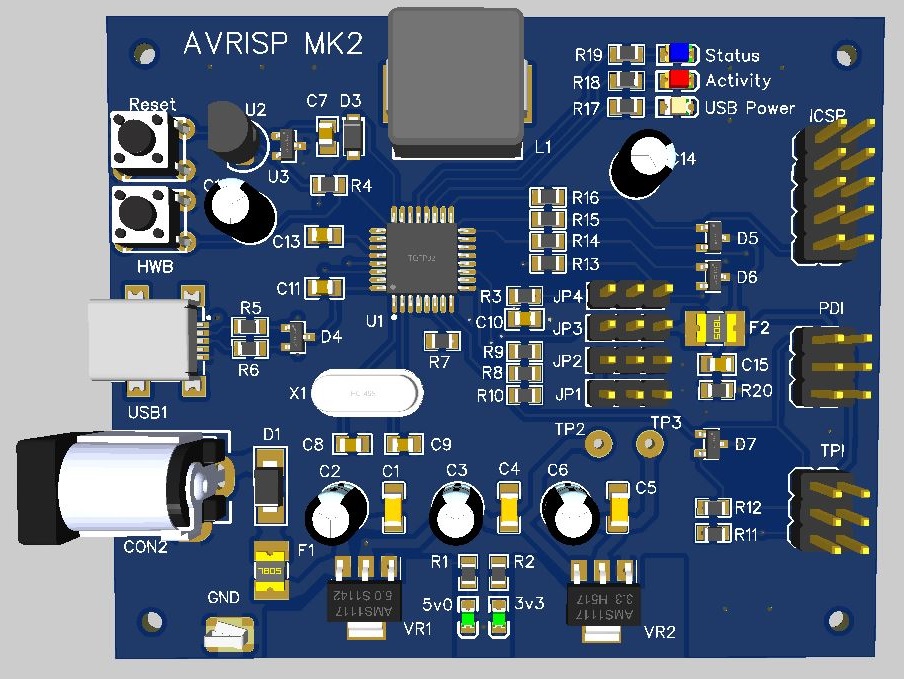

AVR ISP MK2 remake of Olimex AVR ISP MK2
