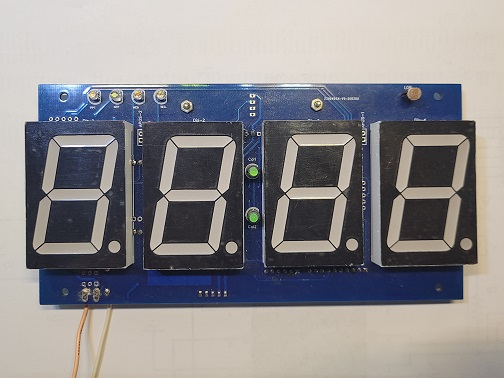

• The board came about as of need for large serial 7 segment LED display and is based on Sparkfun design with larger 1.8" 7 segment LED display modules. Original I2C, serial  and SPI ports are wired to a break out connectors for easy expansion and hookup to driving controllers.

  To make the board more usable and for reason it was build,  number of extra headers are on the board for plug in components like ESP-01 and/or ESPNode (ESP-12) WiFi modules for connectivity to internet. DHT and serial port for GPS module.


  Smaller versions of the board as per original design are with 0.56" and 0.8"






  Software / Firmware
  As the board in essence is a module with ATmega328 it requires firmware to run it as per original design can be found at Sparkfun Github repository.
  Optionally the firmware can be modified to build a custom application.





  Features
  o  Large 4 1.8" LED  modules
  o  Colon LEDs

  o  Apos LED  (left or right side)
  o  I2C, serial, SPI, ICSP wired to outer header
  o  5v 1A onboard regulator
  o  Header for ESP-01 or ESP-12 (ESP Node)

  o  DHT steering jumper ESP-12 or s7s processor
  o  LDR steering jumpers  ESP-12 or s7s processor

  o Header for DS1307 or DS3231 Real Time clock wired into I2C bus
  o  Header for 0.91" I2C oLED display (rearward facing)
  o Header (2 parallel) for GPS module or 2 I/Os (digital) wired into ESP-12
  o     3 pin 2 I/O header (digital)  wired into ESP-12
  o     2 status LEDs  wired into ESP-12

  o     status LED  wired into SQ pin on DS modules
  o     status LED wired into GPS port(s)
  o








  Documents

  Schematic
  PCB layout files
  Gerber Files
  PIC16F328 Datasheet
  PIC16F328A Datasheet
  Firmware
