T10 bulbs

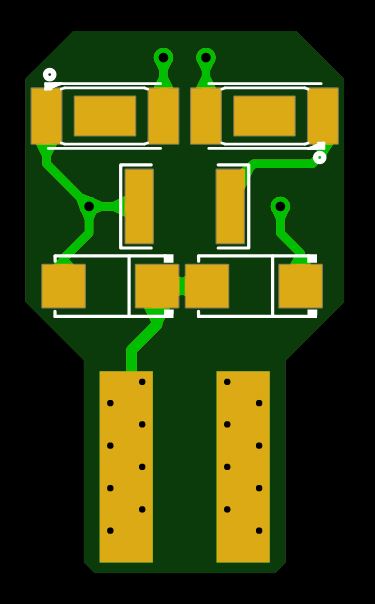

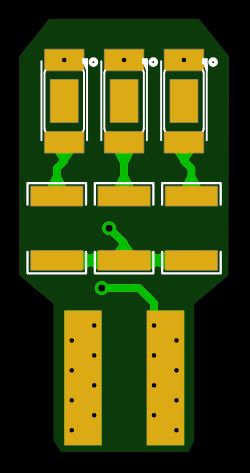

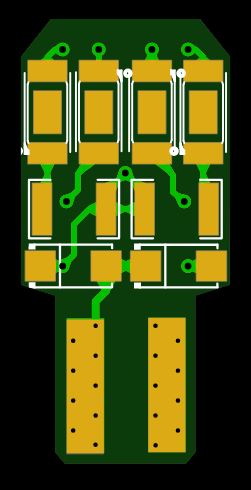

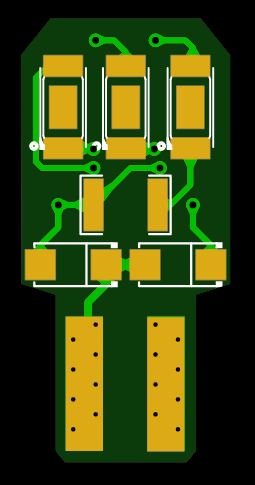

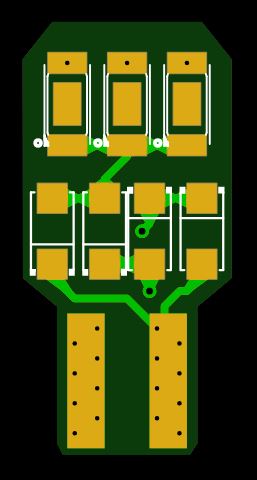

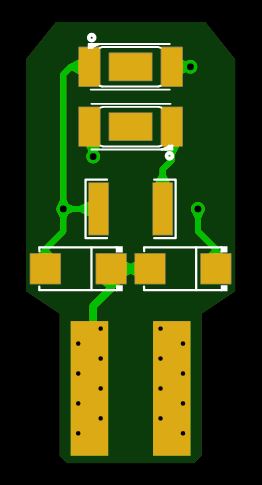

Simple T-10 base format PCB LED  4 and 6 leds in various configurations


Features
o    Onboard bridge diode so there is no polarity requirement
o     current limiting resistors
o 4, 6 and 8 LED segments
o







Documents

Schematic
PCB layout files
Gerber Files
