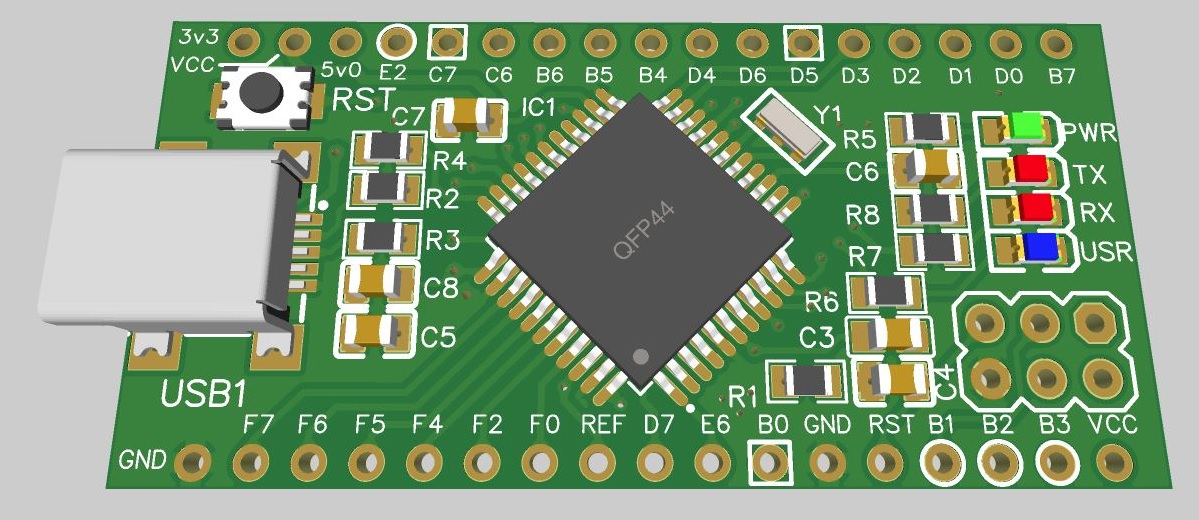

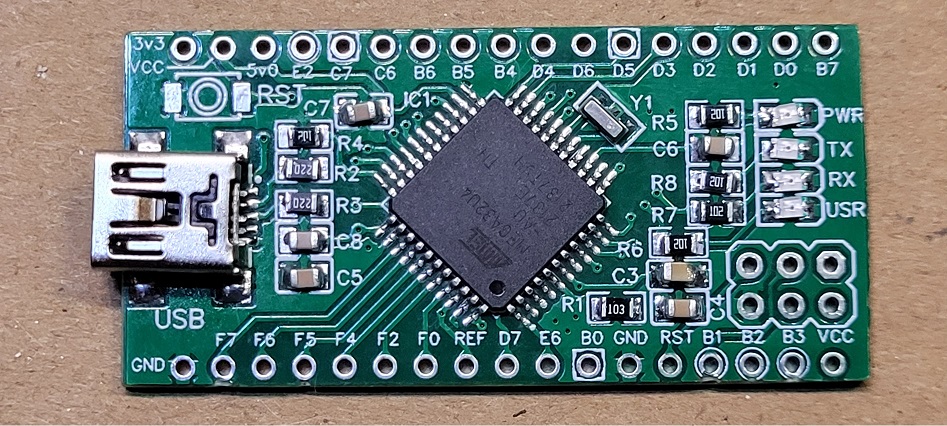

Microchip ATmega32U4 based development board, known under number of
various names as Teensy, Leaonardo, Arduino Mico and Adafruit ATmega32U4
breakout boards to name the few.
All pins from the processor are routed out to the headers including user and
communication LED's for anyone that would re-write board library where
needs those pins for their project or just like to wire those pins somewhere
else in their project.
Labels on top of the board are of actual port labels and markings on bottom
of the board are those of Arduino Leonardo.
Features
o
ATmega32U4 processor
o
3v3
regulator / solder jumper selectable
o
LED indicators
o
Power
o
Tx, Rx
o On board
LED (D13)
o
Board size
74mm x 30mm (5.1in x2.2in)
Board documents:
Schematic
PCB layout files
Gerber Files
Bill of Materials
AMS1117
ATmega32U4
Assembly / board manual
