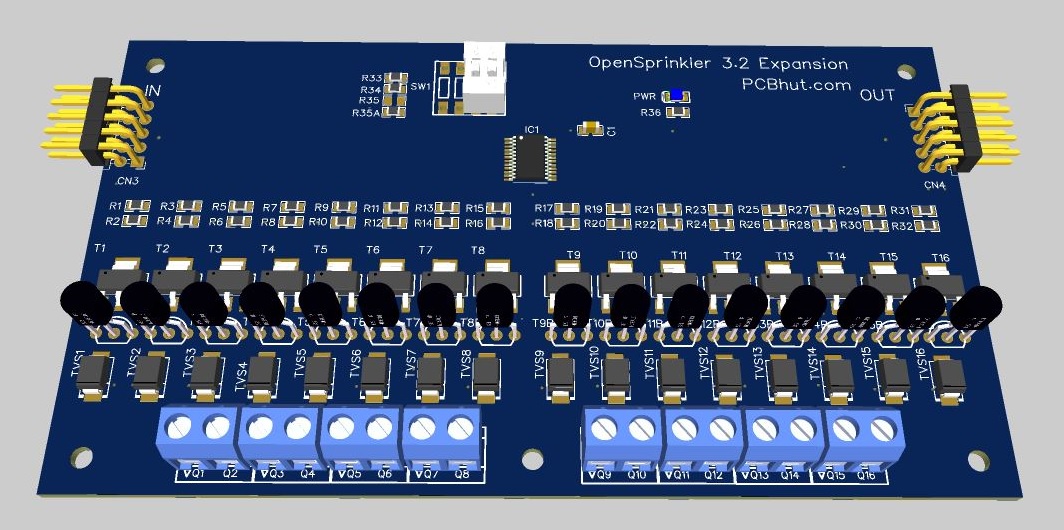

• AC / DC 16 port extension to our OS 3.2 sprinkler controller.
   It uses I2C PCA9555 IO controller chip as main decoder and driver for the ports thus is not compatible with previous version of sprinkler controllers.

  The board is universal and can be configured for either AC or DC drive simply by installing different drive  transistors and by using voltage booster for DC drive output drive transistor. valves it controls. Common power rail is connected through sense resistor on the main controller board so if using it for other purposes it needs to be either connected to common ground or through resistor and supporting circuit if current sensing is required.




  Features





  Documents

     Schematic

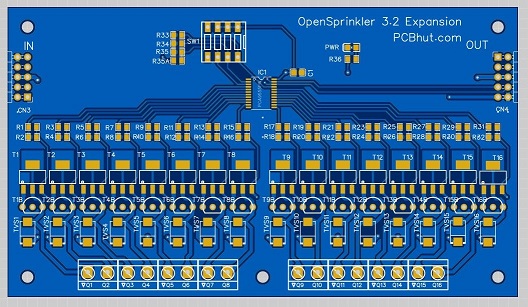

     PCB layout files   (easyEDA)
     Gerber Files
     Bill of Materials
     ESP-12 / ESP8266-12
     AP1509
     PCA9555
     BT1308
     Z0103MN0
     MAC97A6
     2N7000

     2N3904
     Case STL files
