ESP-xx with 5x74hc595 registers
Expanding
on clock variations. Have number of displays with are not multiplexed and
have direct connection to each segment and dot for column and AP / Alarm

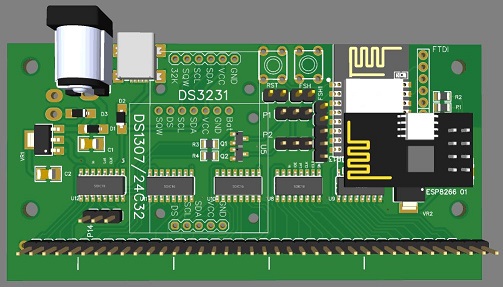

indicators, hence this board with 5 8 bit registers to provide driving of
individual segments. The board features header for ESP-01 and surface mount
option for ESP12. Additionally there are headers for DS1307 / DS3231 modules
to provide accurate time. Extra heads help to interface with buttons, light
sensors and buzzer.
Display board will be needed to
compplete the project or combined gerber file to produce the controller and
display board
Versions of the boards are available on our
Tindie store
Features
o
header
for ESP-01 module
o
Surface
mount pads for ESP-12F module
o Real time clock headers
o On board 5v 1A power regulator and 3.3V 1A power regulators
o 2 switched 500ma outputs
o
o
Documents
Schematic
PCB layout files EasyEDA
Gerber Files
controller only
Gerber Files
controller & display
Bill of Materials
