Pickit 2 (clone) lite   DYI

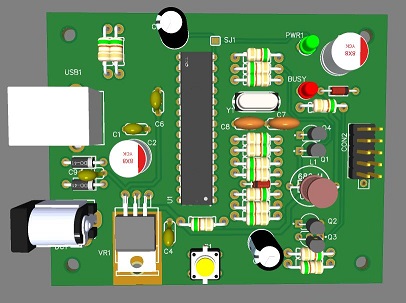

For any one that is looking for slightly smaller  PCB  3.1"x2.5"   (79x64mm) then this is the option  for you. It is compatible with all of the PIC controllers as the full version minus EEPROM and target voltage detection.

If you are looking for Programmer-to-Go feature you will need full version of the board which is slightly bigger or PICkit-3 version

Software
The programmer will need to have firmware programmed into the PIC18F2550 before you can do any thing with it. Unfortunately its catch 22 as you will need a programmer of sort to get the controller programmed first.
Here is the direct link to the Microchip site: PICkit 2 Firmware V2.32
and here is the direct download (just in-case the link goes bad).








Features


o    Full-speed USB support using Windows standard drivers
o     MPLAB IDE compatible

o Real-time execution
o Processors run at maximum speeds

o Built-in over-voltage/short circuit monitor
o Diagnostic LEDs (power, active, status)

o Read/write program and data memory of microcontroller
o Erase of all memory types (EEPROM, ID, configuration and program) with verification
o Freeze-peripherals at breakpoint
o Board size  3.1"x2.5"   (79x64mm)







Documents
Schematic
PCB layout files
PIC18F2550 Datasheet
Bill of Materials
