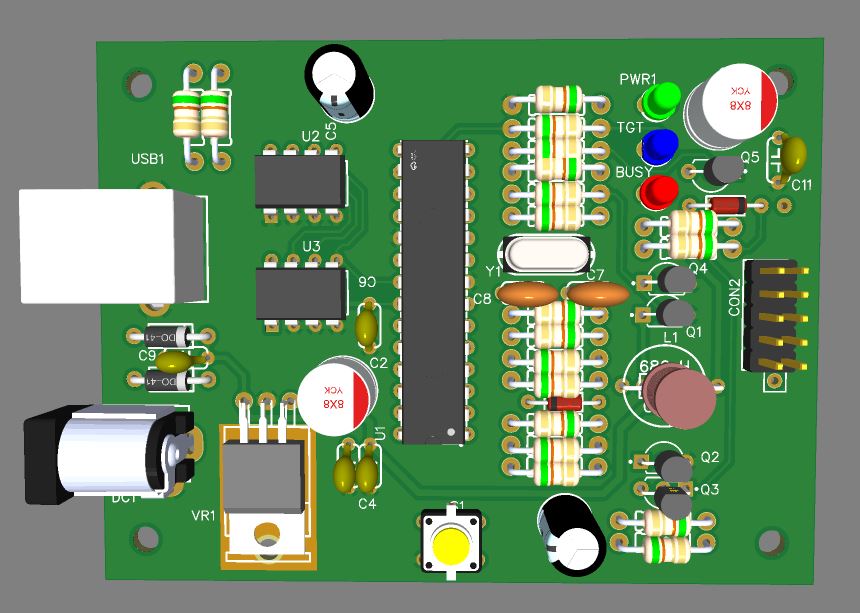

Pickit 2 (clone)
Omitting few components and changing position on couple passive components it can be configured as lite version no voltage generation or detection or programmer on the go option. A 6mm smaller lite version is available.
Software
The programmer will need to have firmware
programmed into the PIC18F2550 before you can do any thing with it.
Unfortunately its catch 22 as you will need a programmer of sort to get the
controller programmed first.
Here is the direct link to the Microchip site: PICkit
2 Firmware V2.32
and here is the direct download (just in-case the link goes bad).
Features
o
Full-speed
USB support using Windows standard drivers
o
MPLAB
IDE compatible
o
Real-time execution
o
Processors run at maximum speeds
o
Built-in over-voltage/short circuit monitor
o
Diagnostic LEDs (power, active, status)
o
Read/write program and data memory of microcontroller
o
Erase of all memory types (EEPROM, ID,
configuration and program) with verification
o
Freeze-peripherals at breakpoint
o
Board size
3.4x2.5 (86x64mm)
o
Program up to 512K byte flash with the Programmer-to-Go
Documents
Schematic
PCB layout files
top
bottom
Gerber Files
PIC18F2550 Datasheet
Bill of Materials
Microchip reference to the programmer and software
pickit2_user_guide_51553e.pdf
pickit_2_logic_tool_user_guide.pdf
pickit_2_v2.61.00_setup_a.zip
Firmware pk2v023200.zip
