Single Wire CAN








Single Wire CAN bus driver module. It needs to be connected to host system or via CAN controller chip into host system.

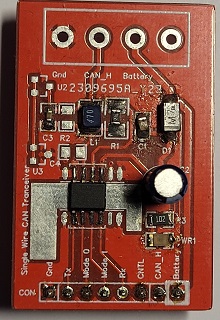

All necessary passive components with the driver chip on a small 1.1x1.7 board. CAN signals are presented on 4 screw terminal or all  connections can be made via the header including CAN and battery.

It is compatible with following Single Wire CAN tranceivers
AU5790 NCV7356 MC33897 TH8056 or NCV736D2R2G drivers


Versions of the boards are available on our Tindie




Documents
Schematic
PCB layout files  EasyEDA
Gerber Files
AU5790
NCV7356
TH8056
