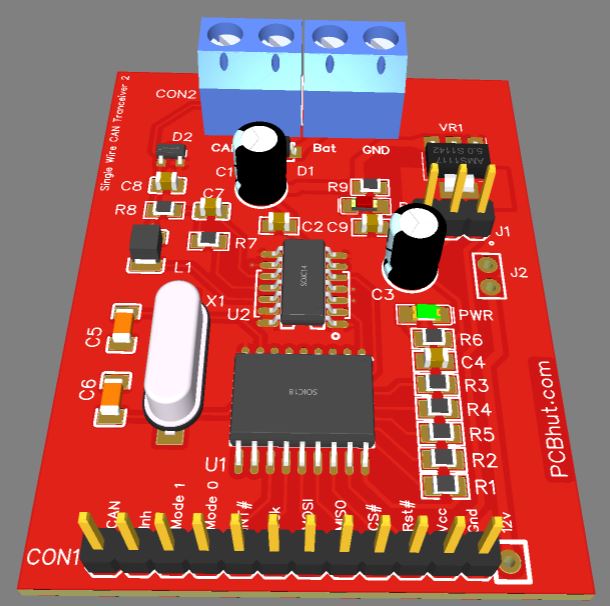

Modified version of original Single Wire CAN SWC
module to include CAN controller. Main purpose of this version is for systems
test environments where host processor does not have the CAN controller module
on onboard. Therefore this module is wired to the host CPU via SPI connection
Single Wire CAN tranceiver using
AU5790 NCV7356 MC33897 TH8056 or NCV736D2R2G drivers
Versions of the boards are available on our
Tindie store
Documents
Schematic
PCB layout files
EasyEDA
Gerber Files
MCP2515
