• To build up on the original trim light, the 2812 version replaces LED bar with addressable 30 dot WS2812 or optionally SK6812 led chips. This allows for RGB colors and different white/amber color temperature options. It also upgrades to more power full  microcontroller and adds options for CAN bus.

  As the complexity and part count is dramatically decreased, manufacturing and cost had been reduced.

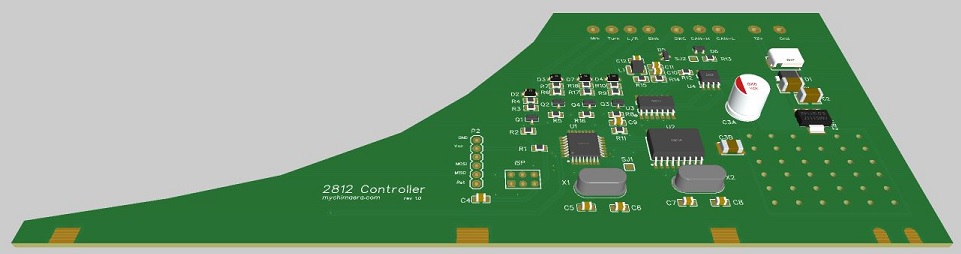

  As the original version, it is still made of 2 boards one being the controller it self and the other being the LED board which can also be used as stand alone bar. Assembly of the boards allows for perfect center location in the housing case with excellent mounting and vibration immunity.

  The controller still accepts normal +12 control signals for marker turn and blank signals. When using and controlling through CAN option Left or Right option selection had been added as to differentiate with corner its mounted in.






  Features

     support for RGB or variants of ws2812 or sk6812 chip color combinations
     30 dot display bar
     Color changing accent light (dependant on led chip)
     Animation from local microcontroller


  Documents

     Schematic
     PCB layout files   (easyEDA)
     Gerber Files  controller
     Gerber Files  (refer to 309x10) board
     Bill of Materials
     Firmware
     ATmega328  data sheet
     MCP2515  data sheet
     MCP2551  data sheet
     NCV7356D2R2G  data sheet
     TH8056 data sheet
