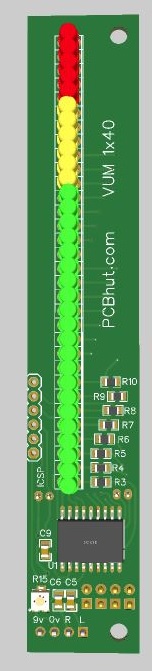

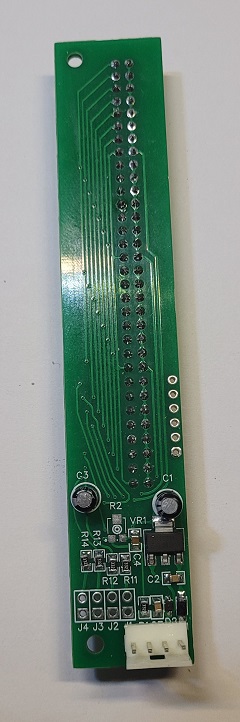

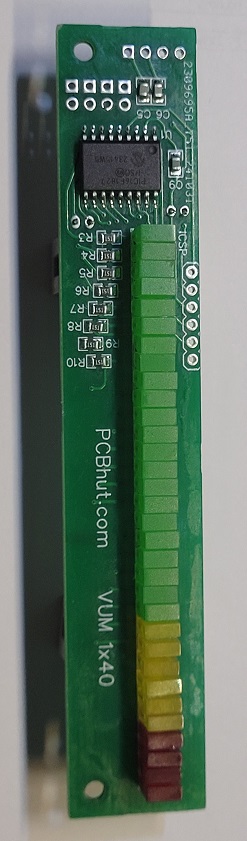

• Based on the VUM-2x16 is this single bar 40 dot VU meter. just like the original its based on Microchip PIC16F88 / PIC16F18x7 microcontroller. The board had been layed out using all surface mounted devices to minimize board size.
  Circuit still has stereo input coupled through capacitors however with extended resolution and no extra available pins this it only capable of single bar display. Therefore the code has been  re- written to to only digitize one channel.
  For anyone wishing to have stereo display, 2 boards will be required with left and right signal going to respective boards.
  Same features are implemented into this version as the original 2x16


  Full project description can be found at S-O webnode.cz   website.











  Features

     Microcontroller sampling of audio
     Log display
     Linear display
     Dot / Bar mode
     Waterfall fall
     Peak hold



  Documents

     Schematic
     PCB Gerber layout files   (easyEDA)
     Bill of Materials
     PIC16F88
     PIC16F1827
     PIC16F1847
     Firmware
