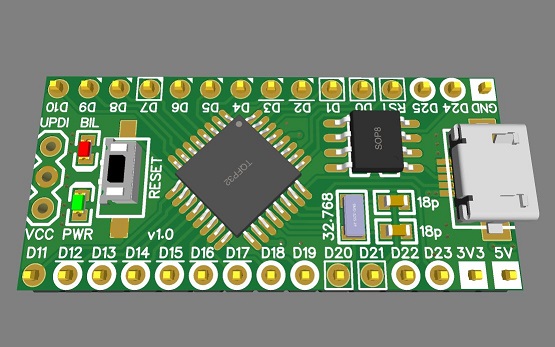

ATmega 4808 break-out board
A development based on SMC mounted ATmega4809 QFP32 version.
The breakout board allows for conversion of QFP to DIP format with on board
power decoupling capacitors UPDI interface for direct programing.
Versions of the boards are available on our
Tindie store
Documents
Schematic
PCB layout files EasyEDA
Gerber Files
