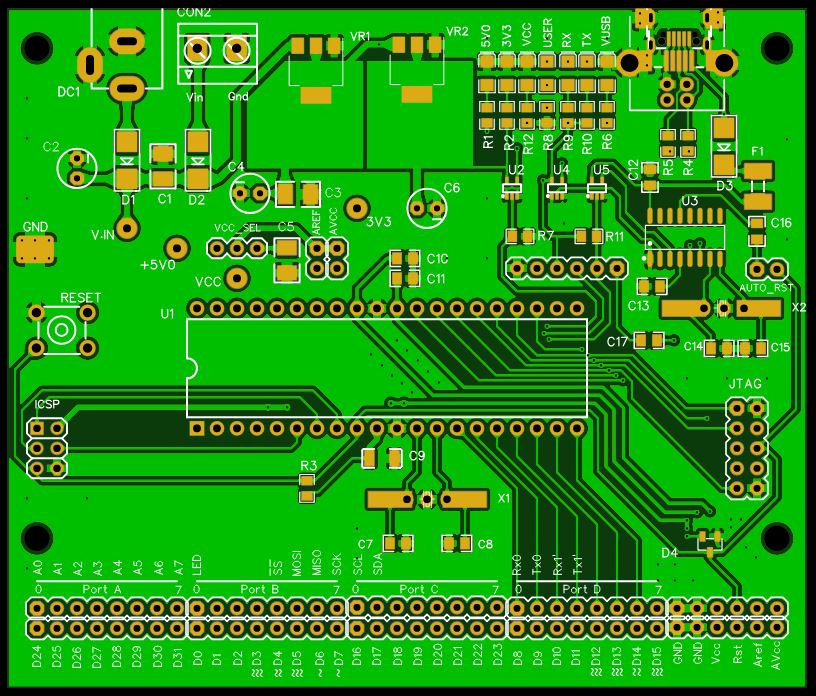

The board was designed to facilitate easy prototyping
of
below processors. Board features on board 1A 5.0 & 3.3V voltage regulators that
are selectable as MCU core voltage, fed through either barrow or terminal post.
Aref and Avcc selectable through jumper from MCU core voltage.
Programming of the board can be performed through ICSP, UART or USB port
depending on board build options.
All processor pins are fed into bottom of the board into the 2 row .1" headers.
Ideally its best to have 40 pin socket soldered in place for the processor and a
3 pin header for easy experimentation with different processors and speeds.
ATmega8535
ATmega16
ATmega32
ATmega164
ATmega324
ATmega644
ATmega1284
