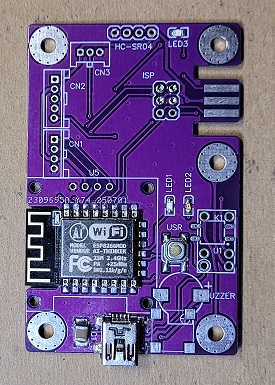

• Building on top of a great product, this redesign expands on ease of connectivity and options of the board. It is slightly taller due to the fact that LCD connector needed to be fitted  onto the board. Additionally a voltage regulator had been added as option to the diodes used as voltage drop, ensuring more stable voltage for the controller but also to drive a relay.

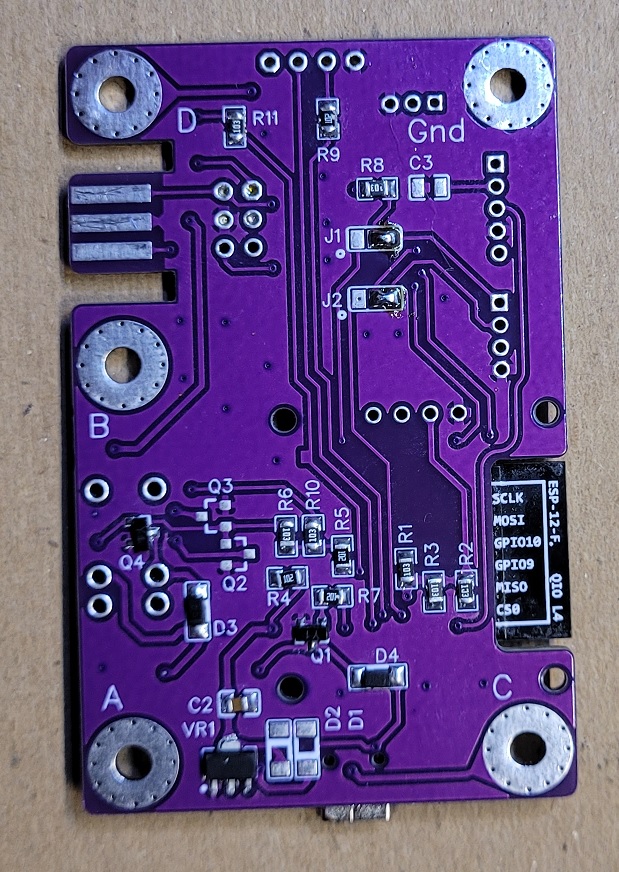

  Solder pads had been converted into 2mm JST connectors for easier wiring, expansion and mounting in general. Some of the pin signals had been routed through solder jumpers on back of the PCB for future expansion and compatibility with current firmware


  Features

     ESP8266 controller
     SOT-89 voltage regulator
     JST connectors for optional sensors
     option for solid state relay / transistor bridge / or dr contact relay for door trigger
     solder jumper for pin reconfiguration
     Mini B USB connector moving away from Micro USB
     choice of 9032 or 7525 sounder
     0.96" OLED display connector
     6 pin edge connector or 2x3 header  connector



  Documents

     Schematic
     Bill of Materials
     ESP-12 / ESP8266-12
     AQY282SX
     G5V-1-DC5
     CH340
     Firmware

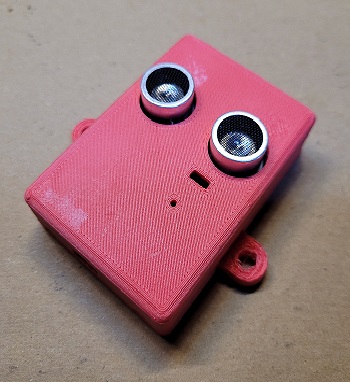

     STL case  (no window)

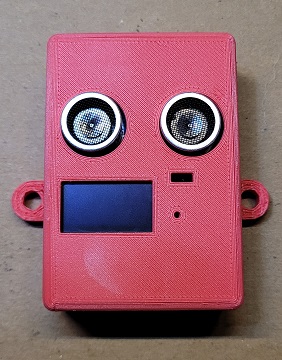

     STL case with window
     LCD support
