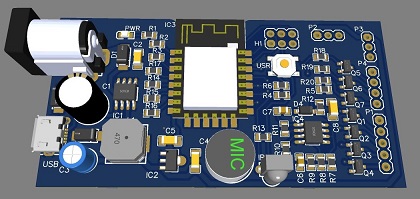

• ESP8266-12 powered LED control board for RGBW and or RGB or 2 strings of  ws2812 or sk6805 smart led chains. Mosfet transistors sink'd  to ground provide easy connection to standard RGB strings.

  WLED  firmware can easily turn the board into custom lighting.


  Features

       1 P1  4 color port   MOSFET switched to ground
       1 P4  3 color port   MOSFET switched to ground
       2 ws2812 ports shared with P4
       IR receiver
       Microphone preamp for sound reactive
       3A 5v regulator  through DC power jack
       Micro USB connector for power  limited by USB spec
       Programming port compatible with auto reset  ( see USB-TTL adapter)


  Documents

     Schematic
     PCB laybout on EasyEDA
     Sample code
     WLED installer from Aircoookie at https://install.wled.me





  The boards are available for purchase on our Tindie store.
