Uno ATtiny 2in1 programmer shield

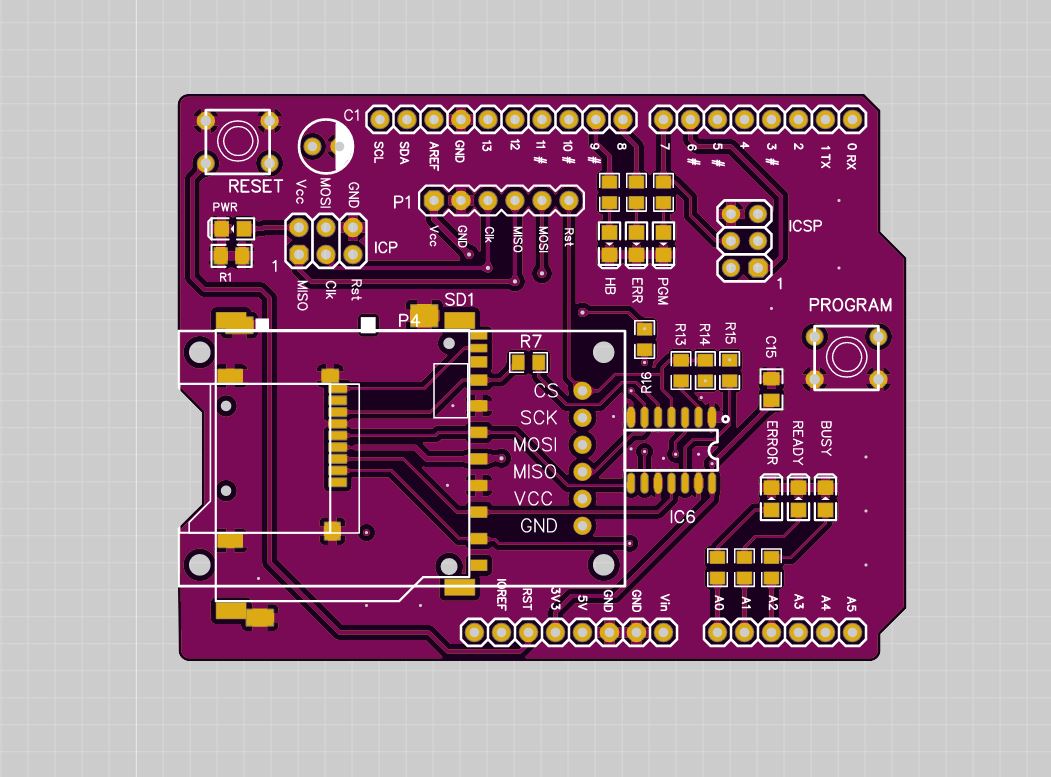

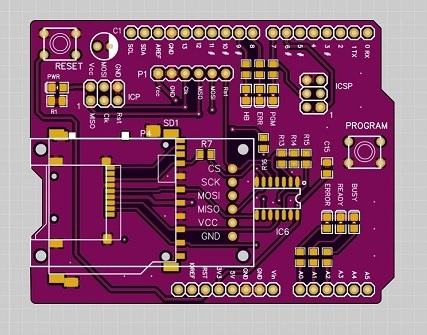

  • Expanding the very easy Arduino as ISP programmer with Nick Gammon programmer option. To keep same size of the shield, proto typing area and the 3 IC sockets had been removed to gain space and components had been converted into surface mounted version. Mini and full size SD card can be mounted onto the board  and connected through 5.0 to 3.3 volt converter.

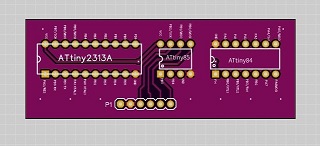

    Sockets to ATtiny84, ATtiny85 and ATtiny x313 are available on a small board which plugs into the P1 connector.  Similarily socket options can be make for other controllers.

    Since the digital pin 7 is used for programming indicator and MOSI  line on Nicks programmer the LED will be active while using Nicks programmer.




    • Features

        o     compatible with Arduino UNO, MEGA 2650
        o     Arduino as ISP
        o     onboard SD (mini or full) circuit or header for SD module
        o     Nick Gammon  HEX  programming






        Documents

           Schematic
           PCB files (easyEDA)
           Gerber files
